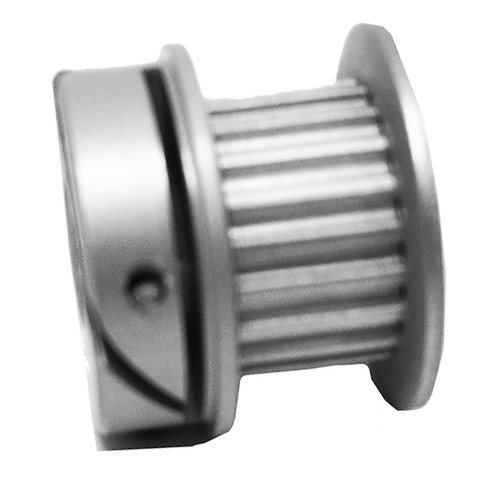

60MP025MIA6, Timing Pulley

60MP025MIA6 - E-Z Lock Hub Aluminum Metric Pulleys

60MP025MIA6

60MP025MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60MP025MIA6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 60MP025MIA6
Teeth 60
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.730
Face Width (in) 0.405
Unit System Metric
P.D. (mm) 39.00
O.D. (mm) 38.30
Flange Diameter (mm) 43.90
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.10
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.16
Part Number Cross Reference A 6D16M060DF6006, 60MP025MIA6, 60MP025MIA6
