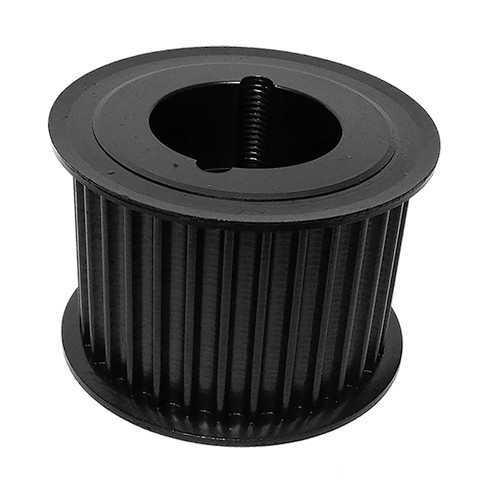

56-8P50-2517, Timing Pulley

56-8P50-2517 - Cast Iron Powerhouse® Pulleys

56-8P50-2517

56-8P50-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-8P50-2517 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	56-8P50-2517
Teeth	56
Tooth Style	8P
For Belt Width (mm)	50.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	5.614
Outside Diameter (in)	5.560
Flange Diameter (in)	5.945
Face Width (in)	2.380
Overall Length (in)	2.380
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.140
Unit System	Inch
Bushing	2517
P.D. (mm)	143.00
O.D. (mm)	141.20
MOQ	1
Weight (lb)	7.98
Part Number Cross Reference	P56-8MGT-50, B568M50TL, P56-8M-50-2517, 20182841, P56-8M-50-2517 HT250 SPKT, P568M50TL, 56-8P50-2517, 112894, 56-8P50-2517

Comparable to: P56-8MGT-50, B568M50TL, P56-8M-50-2517, 20182841, P56-8M-50-2517 HT250 SPKT, P568M50TL, 56-8P50-2517, 112894, 56-8P50-2517
