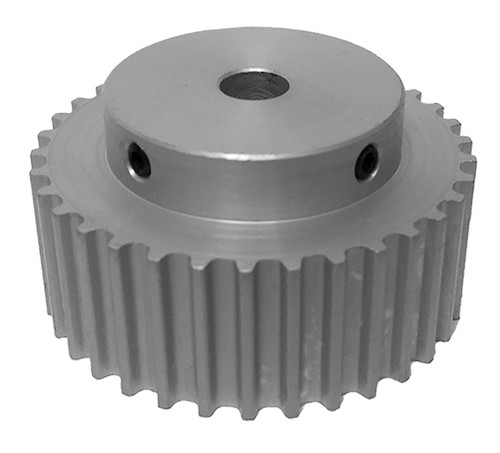

56-5M15M6A12, Timing Pulley

56-5M15M6A12 - Aluminum Powerhouse®HTD® Pulleys

56-5M15M6A12

56-5M15M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-5M15M6A12 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 56-5M15M6A12
Teeth 56
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.464
Face Width (in) 0.781
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 89.00
O.D. (mm) 88.00
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.50
Part Number Cross Reference A 6A25M056NF1512, A6A25M056NF1512, 56-5M15M6A12, 56-5M15M6A12
Set Screw Quantity 2
