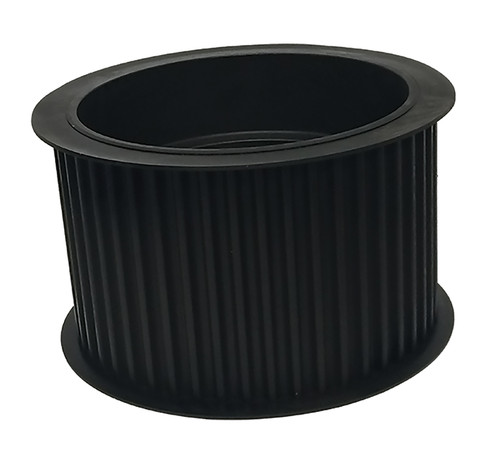

56-14P115-4040, Timing Pulley

56-14P115-4040 - Cast Iron Powerhouse® Pulleys

56-14P115-4040

56-14P115-4040, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-14P115-4040 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	56-14P115-4040
Teeth	56
Tooth Style	14P
For Belt Width (mm)	115.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 4040 Bushing
Pitch Diameter (in)	9.825
Outside Diameter (in)	9.715
Flange Diameter (in)	10.355
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	1.4375
Pulley Belt Width (in)	4.930
Unit System	Inch
Bushing	4040
P.D. (mm)	250.00
O.D. (mm)	246.80
MOQ	1
Weight (lb)	58.40
Part Number Cross Reference	P56-14MGT-115, B5614M115TL, P56-14M-115-4040, 20182835, P56-14M-115-4040 HT250 SPKT, P5614M115TL, 56-14P115-4040, 114525, 56-14P115-4040

Comparable to: P56-14MGT-115, B5614M115TL, P56-14M-115-4040, 20182835, P56-14M-115-4040 HT250 SPKT, P5614M115TL, 56-14P115-4040, 114525, 56-14P115-4040
