54LT187-6FA3, Timing Pulley

54LT187-6FA3 - Aluminum Imperial Pitch Pulleys

54LT187-6FA3

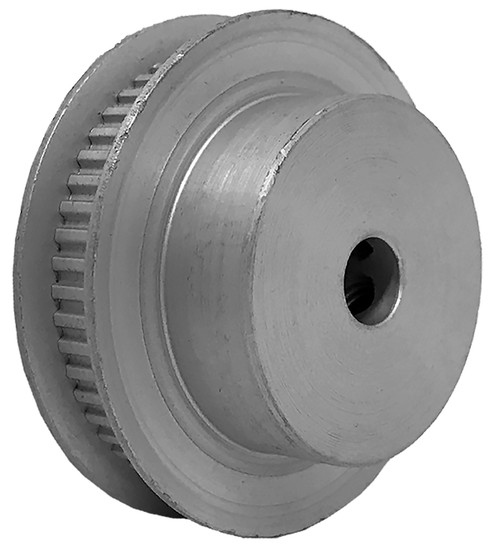

54LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 54LT187-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	54LT187-6FA3
Teeth	54
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.403
Outside Diameter (in)	1.383
Flange Diameter (in)	1.575
Face Width (in)	0.340
Overall Length (in)	0.656
Hub Diameter (in)	1.066
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.220
Unit System	Inch
P.D. (mm)	36.00
O.D. (mm)	35.10
MOQ	1
Weight (lb)	0.08
Part Number Cross Reference	A 6A6-54DF01808, A6A6-54DF01808, 54LT-187 X 1/4-6F, 54M187-1A X 1/4, 54LT187-6FA3, 54LT187-6FA3
Set Screw Quantity	2

Comparable to: A 6A6-54DF01808, A6A6-54DF01808, 54LT-187 X 1/4-6F, 54M187-1A X 1/4, 54LT187-6FA3, 54LT187-6FA3
