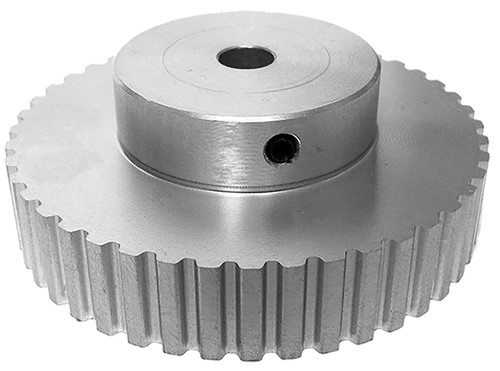

48XL037M6A12, Timing Pulley

48XL037M6A12 - Aluminum Metric Pulleys

48XL037M6A12

48XL037M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48XL037M6A12 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48XL037M6A12
Teeth 48
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 3.056
Outside Diameter (in) 3.036
Pulley Belt Width (mm) 9.50
Unit System Metric
P.D. (mm) 78.00
O.D. (mm) 77.10
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.48
Part Number Cross Reference A 6A3M48NF09512, A6A3M48NF09512, 48XL037M6A12, 48XL037M6A12
Set Screw Quantity 2
