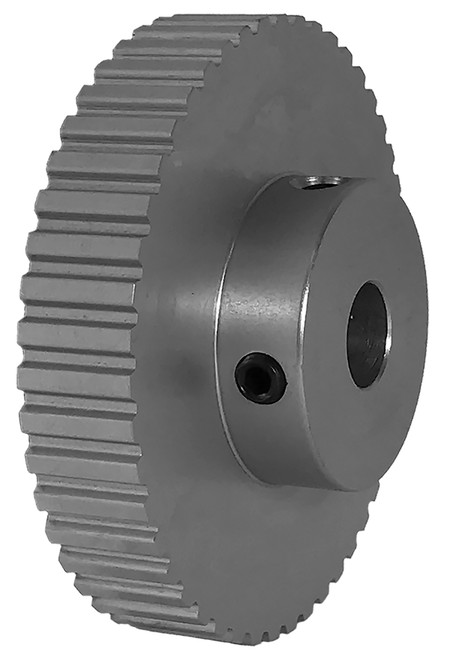

48XL037-6A6, Timing Pulley

48XL037-6A6 - Aluminum Imperial Pitch Pulleys

48XL037-6A6

48XL037-6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48XL037-6A6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48XL037-6A6
Teeth 48
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.500
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 3.056
Outside Diameter (in) 3.036
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 78.00
O.D. (mm) 77.10
MOQ 1
Weight (lb) 0.49
Part Number Cross Reference A A-NF, A6A3-48NF03716, 48XL037 X 1/2 6A, 48XL037-3A 1/2, 48XL037-6A6, 48XL037-6A6
Set Screw Quantity 2
