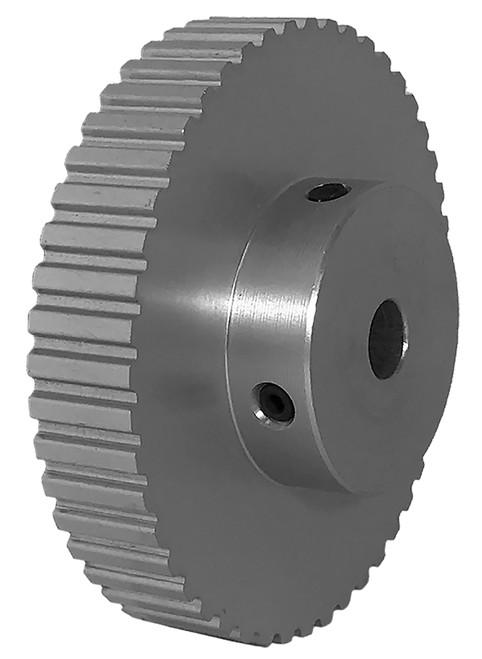

48XL037-6A5, Timing Pulley

48XL037-6A5 - Aluminum Imperial Pitch Pulleys

48XL037-6A5

48XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48XL037-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48XL037-6A5
Teeth 48
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 3.056
Outside Diameter (in) 3.036
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 78.00
O.D. (mm) 77.10
MOQ 1
Weight (lb) 0.50
Part Number Cross Reference A A-NF, A6A3-48NF03712, PB48XL037, 48XL037 X 3/8 6A, 48XL037-3A 3/8, 48XL037-6A5, 48XL037-6A5
Set Screw Quantity 2

Comparable to: A A-NF, A6A3-48NF03712, PB48XL037, 48XL037 X 3/8 6A, 48XL037-3A 3/8, 48XL037-6A5, 48XL037-6A5

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
