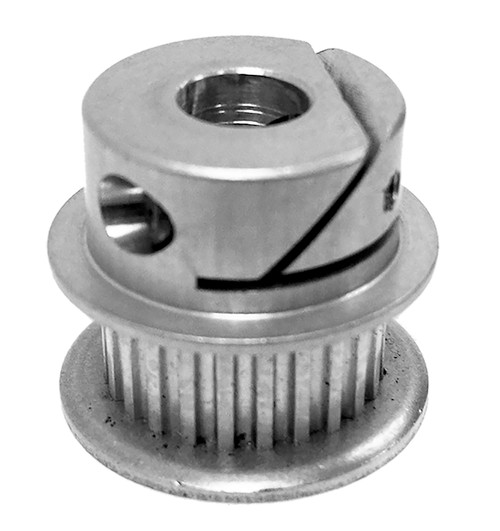

48MP025-IA3, Timing Pulley

48MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

48MP025-IA3

48MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48MP025-IA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48MP025-IA3
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 31.00
O.D. (mm) 30.50
Number & Screw Size 1 x 4-40
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6D16-048DF2508, 48MP025-IA3, 48MP025-IA3
