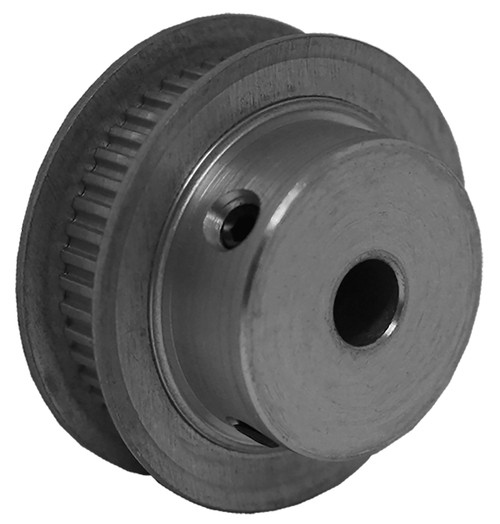

48MP025-6FA3, Timing Pulley

48MP025-6FA3 - Aluminum Imperial Pitch Pulleys

48MP025-6FA3

48MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48MP025-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48MP025-6FA3
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.936
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 31.00
O.D. (mm) 30.50
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A16-048DF2508, A6A16-048DF2508, PB48MXL025, 48MP-025-1/4-6FA, PT048A08L04T, TP7A4W4-48, 48MXL025-1A X 1/4, 48MP025-6FA3, 48MP025-6FA3
Set Screw Quantity 2

Comparable to: A 6A16-048DF2508, A6A16-048DF2508, PB48MXL025, 48MP-025-1/4-6FA, PT048A08L04T, TP7A4W4-48, 48MXL025-1A X 1/4, 48MP025-6FA3, 48MP025-6FA3
