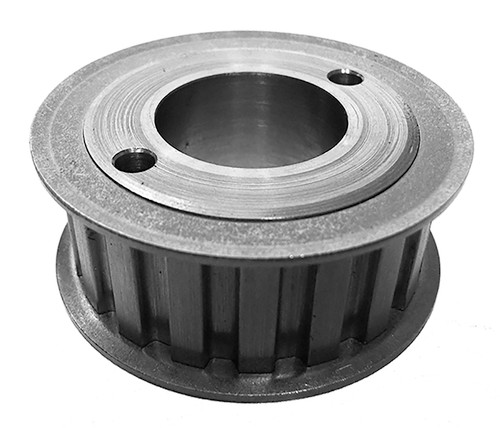

48LP075, Timing Pulley

48LP075 - Cast Iron Imperial Pitch Pulleys

48LP075

48LP075, Timing Pulley, Cast Iron

Learn more about 48LP075 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48LP075
Teeth 48
Tooth Style L
For Belt Width (in) 0.7500
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 6.000
Face Width (in) 1.000
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 6.16
Part Number Cross Reference 48LP075, 48LP075, 48LP075
