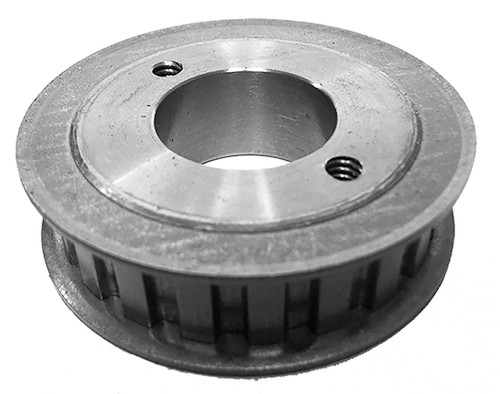

48LH050, Timing Pulley

48LH050 - Cast Iron Imperial Pitch Pulleys

48LH050

48LH050, Timing Pulley, Cast Iron

Learn more about 48LH050 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48LH050
Teeth 48
Tooth Style L
For Belt Width (in) 0.5000
Type 5
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 6.000
Face Width (in) 0.750
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 4.58
Part Number Cross Reference 48LH050, 48LH050, 48LH050
