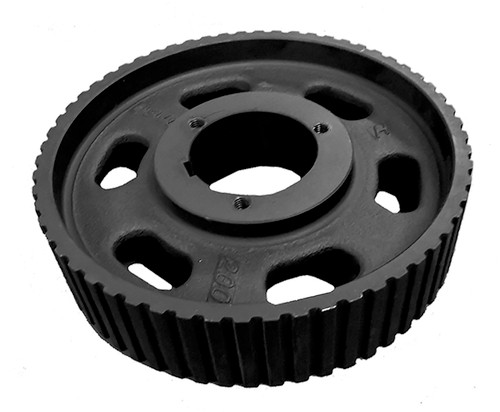

48HQ200, Timing Pulley

48HQ200 - Cast Iron Imperial Pitch Pulleys

48HQ200

48HQ200, Timing Pulley, Cast Iron

Learn more about 48HQ200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48HQ200
Teeth 48
Tooth Style H
For Belt Width (in) 2.0000
Type E1F
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 7.639
Outside Diameter (in) 7.585
Flange Diameter (in) 7.875
Face Width (in) 2.500
Overall Length (in) 2.781
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 194.00
O.D. (mm) 192.70
MOQ 1
Weight (lb) 19.11
Part Number Cross Reference 48HQ200, 48HQ200, 48HQ200
