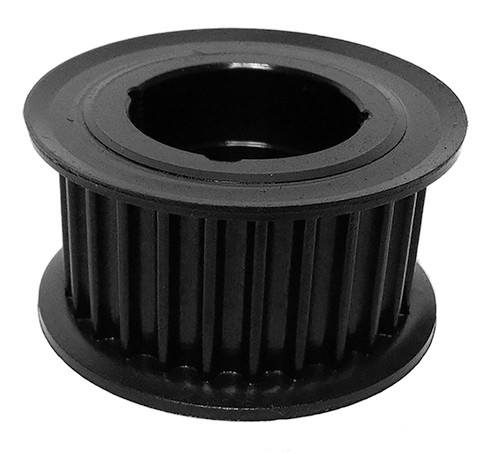

48-8P30-2012, Timing Pulley

48-8P30-2012 - Cast Iron Powerhouse® Pulleys

48-8P30-2012

48-8P30-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-8P30-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-8P30-2012
Teeth 48
Tooth Style 8P
For Belt Width (mm) 30.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.812
Outside Diameter (in) 4.758
Flange Diameter (in) 5.157
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 2012
P.D. (mm) 122.00
O.D. (mm) 120.90
MOQ 1
Weight (lb) 4.19
Part Number Cross Reference P48-8MGT-30, B488M30TL, P48-8M-30-2012, 20182828, P48-8M-30-2012 HT250 SPKT, P488M30TL, 48-8P30-2012, 112878, 48-8P30-2012

Comparable to: P48-8MGT-30, B488M30TL, P48-8M-30-2012, 20182828, P48-8M-30-2012 HT250 SPKT, P488M30TL, 48-8P30-2012, 112878, 48-8P30-2012

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
RoHS Certification
