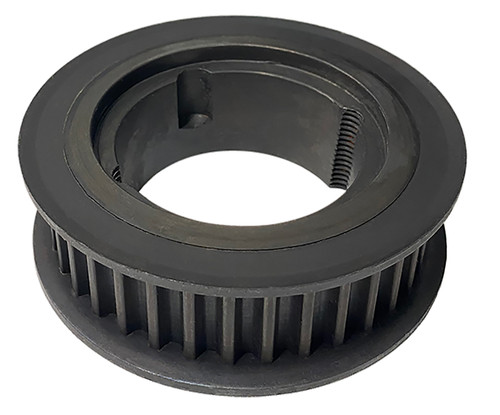

48-8MX21-2012, Timing Pulley

48-8MX21-2012

48-8MX21-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-8MX21-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	48-8MX21-2012
Teeth	48
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.812
Outside Diameter (in)	4.749
Flange Diameter (in)	5.157
Face Width (in)	1.250
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.960
Unit System	Inch
Bushing	2012
P.D. (mm)	122.00
O.D. (mm)	120.60
MOQ	1
Weight (lb)	1.70
Part Number Cross Reference	8MX-48S-21, B8MCS-48-21, 48G-8M-21-2012, 20296079, 8MX-48S-21-2012 HT500 SPKT, 8MPC48S21, 48-8MX21-2012, 481935, 48-8MX21-2012
