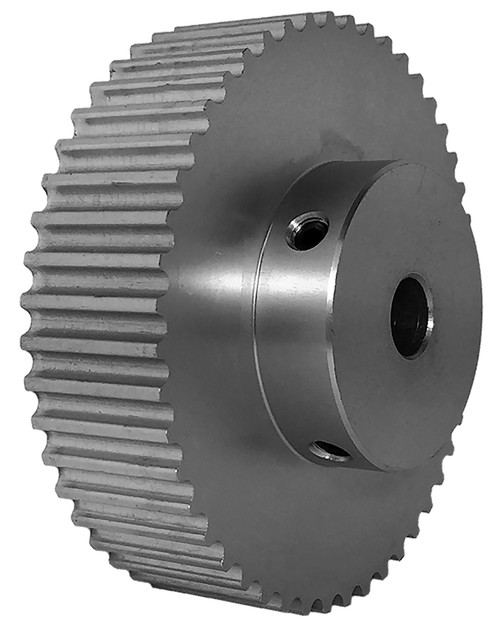

48-5P15-6A5, Timing Pulley

48-5P15-6A5 - Aluminum Powerhouse® Pulleys

48-5P15-6A5

48-5P15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-5P15-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-5P15-6A5
Teeth 48
Tooth Style 5P
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 76.00
O.D. (mm) 75.30
MOQ 1
Weight (lb) 0.60
Part Number Cross Reference P48-5MGT-15AL, 48-5P15-6A5, 48-5P15-6A5
Set Screw Quantity 2
