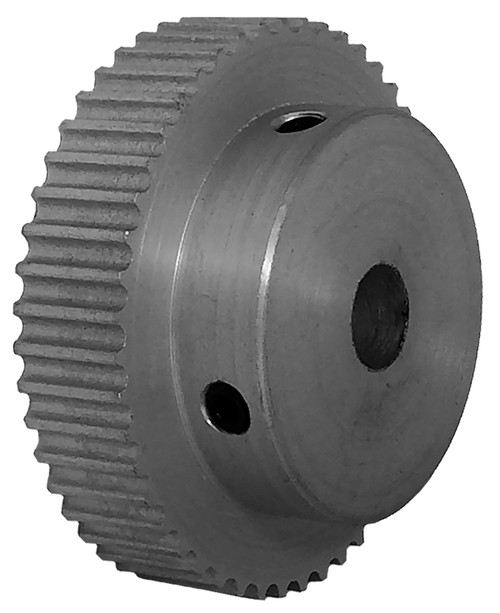

48-3P06-6A4, Timing Pulley

48-3P06-6A4 - Aluminum Powerhouse® Pulleys

48-3P06-6A4

48-3P06-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-3P06-6A4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-3P06-6A4
Teeth 48
Tooth Style 3P
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 1.805
Outside Diameter (in) 1.775
Face Width (in) 0.407
Overall Length (in) 0.734
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 46.00
O.D. (mm) 45.10
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A53-048NF0610, A6A53-048NF0610, 3MR-48S-06, 3MR-48S-06 6, 48-3P06-6A4, 48-3P06-6A4
Set Screw Quantity 2
