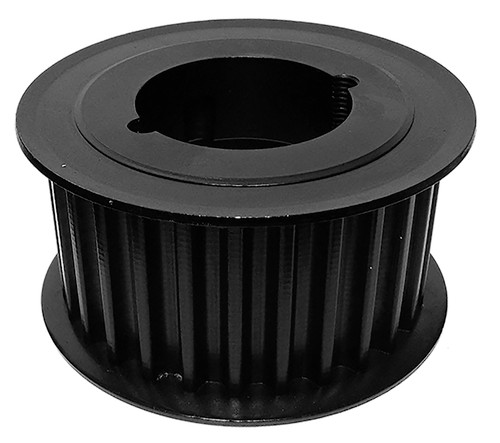

48-14P55-3020, Timing Pulley

48-14P55-3020 - Cast Iron Powerhouse® Pulleys

48-14P55-3020

48-14P55-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-14P55-3020 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-14P55-3020
Teeth 48
Tooth Style 14P
For Belt Width (mm) 55.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Pulley Belt Width (in) 2.430
Unit System Inch
Bushing 3020
P.D. (mm) 214.00
O.D. (mm) 211.10
MOQ 1
Weight (lb) 23.60
Part Number Cross Reference P48-14MGT-55, B4814M55TL, P48-14M-55-3020, 20182825, P48-14M-55-3020 HT250 SPKT, P4814M55TL, 48-14P55-3020, 112931, 48-14P55-3020

Comparable to: P48-14MGT-55, B4814M55TL, P48-14M-55-3020, 20182825, P48-14M-55-3020 HT250 SPKT, P4814M55TL, 48-14P55-3020, 112931, 48-14P55-3020
