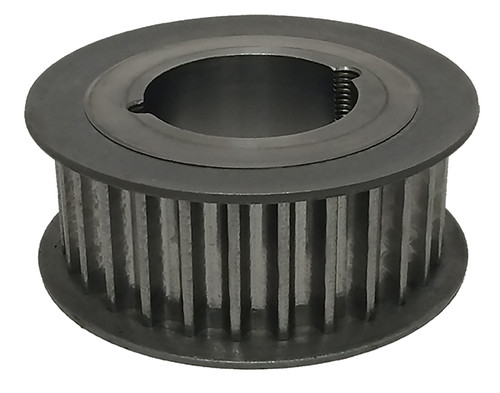

48-14P40-2517, Timing Pulley

48-14P40-2517 - Cast Iron Powerhouse® Pulleys

48-14P40-2517

48-14P40-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-14P40-2517 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-14P40-2517
Teeth 48
Tooth Style 14P
For Belt Width (mm) 40.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2517
P.D. (mm) 214.00
O.D. (mm) 211.10
MOQ 1
Weight (lb) 22.27
Part Number Cross Reference P48-14MGT-40, B4814M40TL, P48-14M-40-2517, 20182824, P48-14M-40-2517 HT250 SPKT, P4814M40TL, 48-14P40-2517, 112911, 48-14P40-2517

Comparable to: P48-14MGT-40, B4814M40TL, P48-14M-40-2517, 20182824, P48-14M-40-2517 HT250 SPKT, P4814M40TL, 48-14P40-2517, 112911, 48-14P40-2517
