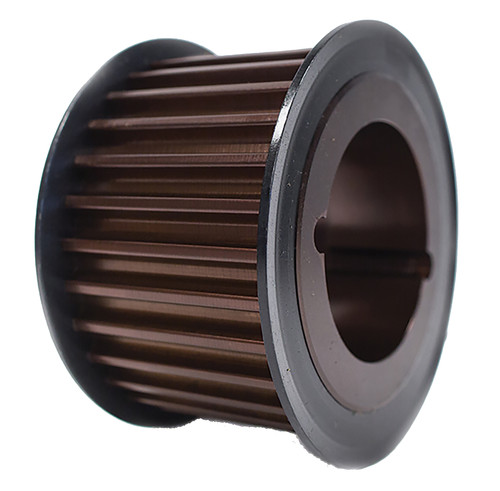

48-14MX68-3525, Timing Pulley

48-14MX68-3525 - Cast Iron Powerhouse® MX Pulleys

48-14MX68-3525

48-14MX68-3525, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-14MX68-3525 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-14MX68-3525
Teeth 48
Tooth Style 14MX
For Belt Width (mm) 68.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3525 Bushing
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 3.328
Overall Length (in) 3.328
Min. Bore (in) 1.5
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 3525
P.D. (mm) 214.00
O.D. (mm) 211.10
MOQ 1
Weight (lb) 24.22
Part Number Cross Reference 14MX-48S-68, 14MX48S68-3525, B14MCS-48-68, 48G-14M-68-3525, 20839840, 14MX-48S-68-3525 HT500 SPKT, 14MPC48S68, 14MX48S68-3525, 48-14MX68-3525, 482111, 48-14MX68-3525

Comparable to: 14MX-48S-68, 14MX48S68-3525, B14MCS-48-68, 48G-14M-68-3525, 20839840, 14MX-48S-68-3525 HT500 SPKT, 14MPC48S68, 14MX48S68-3525, 48-14MX68-3525, 482111, 48-14MX68-3525
