48-14MX125-6FS16, Timing Pulley

48-14MX125-6FS16 - Steel Powerhouse® MX Pulleys

48-14MX125-6FS16

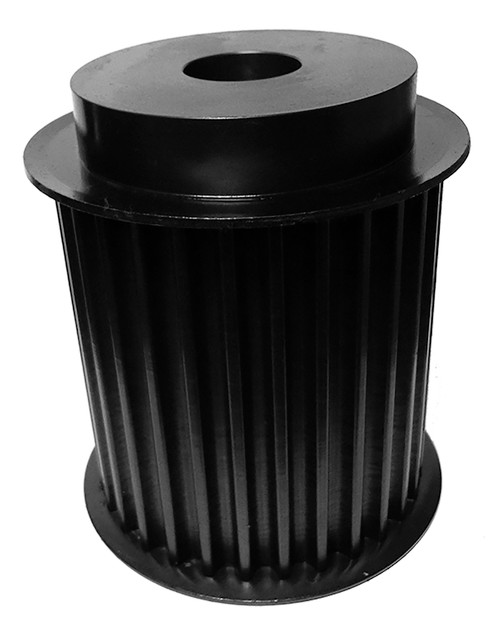

48-14MX125-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 48-14MX125-6FS16 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-14MX125-6FS16
Teeth 48
Tooth Style 14MX
For Belt Width (mm) 125.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.500
Bore Description 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 5.609
Overall Length (in) 6.813
Hub Diameter (in) 7.290
Min. Bore (in) 1.5
Pulley Belt Width (in) 5.290
Unit System Inch
P.D. (mm) 214.00
O.D. (mm) 211.10
MOQ 1
Weight (lb) 86.00
Part Number Cross Reference PB14MX-48S-125, PB14MCS-48-125, 48G-14M-125-MPB, 20839841, PB14MX-48S-125 MPB, 14MPC48S125MPB, 48-14MX125-6FS16, 482181, 48-14MX125-6FS16

Comparable to: PB14MX-48S-125, PB14MCS-48-125, 48G-14M-125-MPB, 20839841, PB14MX-48S-125 MPB, 14MPC48S125MPB, 48-14MX125-6FS16, 482181, 48-14MX125-6FS16
