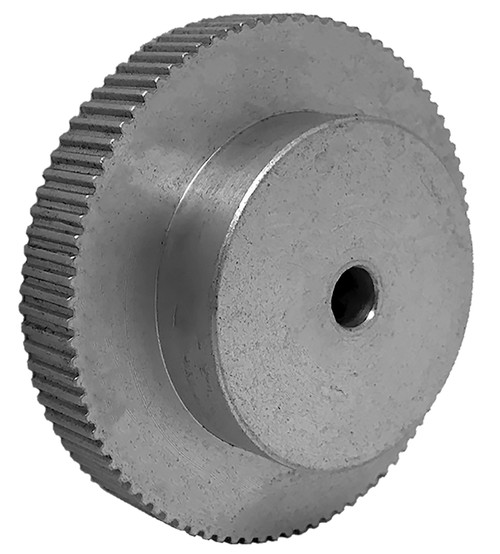

45LT187-6A3, Timing Pulley

45LT187-6A3 - Aluminum Imperial Pitch Pulleys

45LT187-6A3

45LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45LT187-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	45LT187-6A3
Teeth	45
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.169
Outside Diameter (in)	1.149
Face Width (in)	0.750
Overall Length (in)	0.796
Hub Diameter (in)	0.796
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	30.00
O.D. (mm)	29.20
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	A 6A6-45NF01808, A6A6-45NF01808, 45LT-187 X 1/4-6, 45M187-2A X 1/4, 45LT187-6A3, 45LT187-6A3
Set Screw Quantity	2

Comparable to: A 6A6-45NF01808, A6A6-45NF01808, 45LT-187 X 1/4-6, 45M187-2A X 1/4, 45LT187-6A3, 45LT187-6A3
