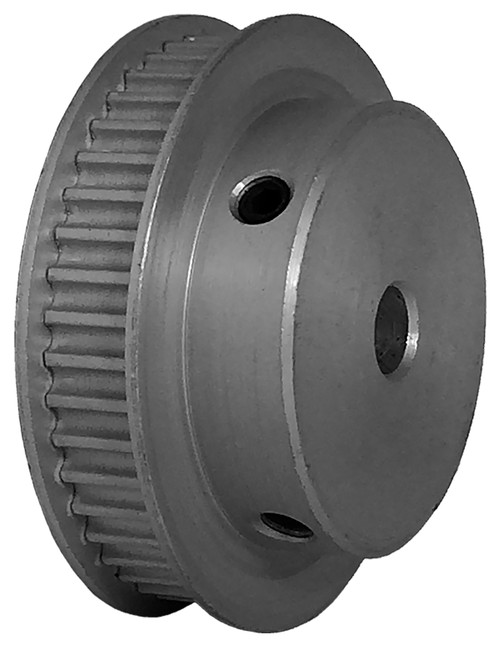

45-3P06-6FA3, Timing Pulley

45-3P06-6FA3 - Aluminum Powerhouse® Pulleys

45-3P06-6FA3

45-3P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-3P06-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	45-3P06-6FA3
Teeth	45
Tooth Style	3P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.692
Outside Diameter (in)	1.662
Flange Diameter (in)	1.775
Face Width (in)	0.407
Overall Length (in)	0.713
Hub Diameter (in)	1.300
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.280
Unit System	Inch
P.D. (mm)	43.00
O.D. (mm)	42.20
MOQ	1
Weight (lb)	0.13
Part Number Cross Reference	A 6A53-045DF0608, A6A53-045DF0608, 3MR-45S-06, 3MR-45S-06 6F, 45-3P06-6FA3, 45-3P06-6FA3
Set Screw Quantity	2

Comparable to: A 6A53-045DF0608, A6A53-045DF0608, 3MR-45S-06, 3MR-45S-06 6F, 45-3P06-6FA3, 45-3P06-6FA3

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide

For custom parts click here

RoHS Certification
