44HQ300, Timing Pulley

44HQ300 - Cast Iron Imperial Pitch Pulleys

44HQ300

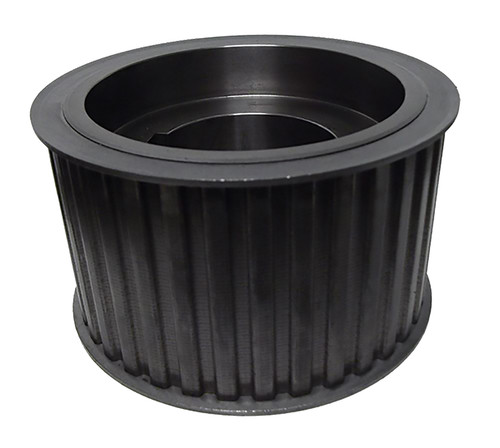

44HQ300, Timing Pulley, Cast Iron

Learn more about 44HQ300 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 44HQ300
Teeth 44
Tooth Style H
For Belt Width (in) 3.0000
Type 11
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 7.003
Outside Diameter (in) 6.949
Flange Diameter (in) 7.250
Face Width (in) 3.313
Overall Length (in) 3.594
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 178.00
O.D. (mm) 176.50
MOQ 1
Weight (lb) 18.80
Part Number Cross Reference 44HQ300, 44HQ300, 44HQ300
