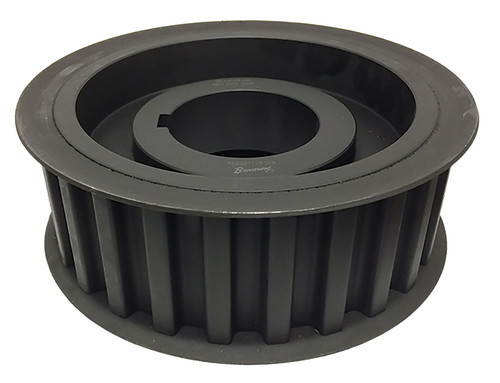

40XXHR300, Timing Pulley, Cast Iron
Specifications
| Product Number | 40XXHR300 |
| Teeth | 40 |
| Tooth Style | XXH |
| For Belt Width (in) | 3.000 |
| Type | 12 |
| Material | Cast Iron |
| Flange Material | Steel |
| Bore Type | Split Taper |
| Bore (in) | R1 |
| Pitch Diameter (in) | 15.915 |
| Outside Diameter (in) | 15.795 |
| Flange Diameter (in) | 16.625 |
| Face Width (in) | 3.688 |
| Overall Length (in) | 3.969 |
| Min. Bore (in) | 1.125 |
| Unit System | Inch |
| Bushing | R1 |
| MOQ | 1 |
| Weight (lb) | 59.50 |
| Part Number Cross Reference | 1058247, 40XXHR300 |
