40XL037M6A10 Imperial Pitch Pulleys

40XL037M6A10 - Aluminum Metric Pulleys

Product Details for 40XL037M6A10

Comparable to: A AMNF, A6A3M40NF09510

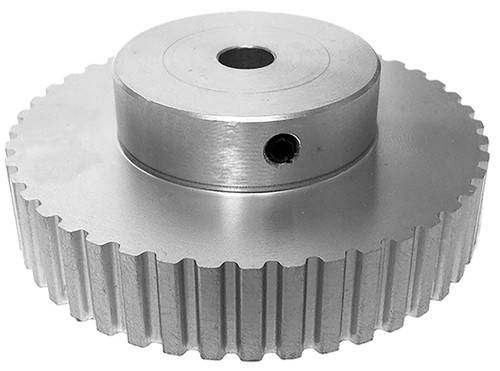

40XL037M6A10, Timing Pulley, Aluminum, Clear Anodized,

Specifications

Product Number 40XL037M6A10
Teeth 40
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 10.00
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 64.70
O.D. (mm) 64.20
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.35
Part Number Cross Reference A AMNF, A6A3M40NF09510
Set Screw Quantity 2
