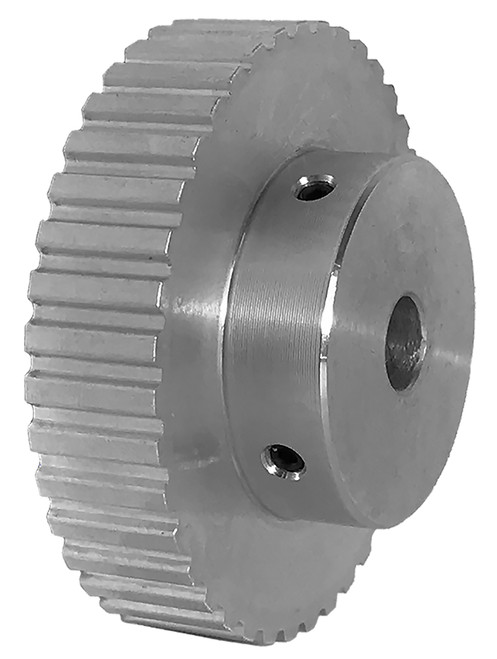

40XL037-6A5 Imperial Pitch Pulleys
40XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,
Specifications
| Product Number | 40XL037-6A5 |
| Teeth | 40 |
| Tooth Style | XL |
| For Belt Width (in) | 0.375 |
| Type | 6 |
| Material | Aluminum |
| Finish | Clear Anodized |
| Bore Type | Finished Bore |
| Bore (in) | 3/8 Inch Finished Bore |
| Pitch Diameter (in) | 2.546 |
| Outside Diameter (in) | 2.526 |
| Face Width (in) | 0.563 |
| Overall Length (in) | 1.000 |
| Hub Diameter (in) | 1.500 |
| Min. Bore (in) | 0.375 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 0.36 |
| Part Number Cross Reference | A A-NF, A6A3-40NF03712 |
| Set Screw Quantity | 2 |
