40XHR300 Imperial Pitch Pulleys

40XHR300 - Cast Iron Imperial Pitch Pulleys

Product Details for 40XHR300

Comparable to: 1057827, 40XHR300

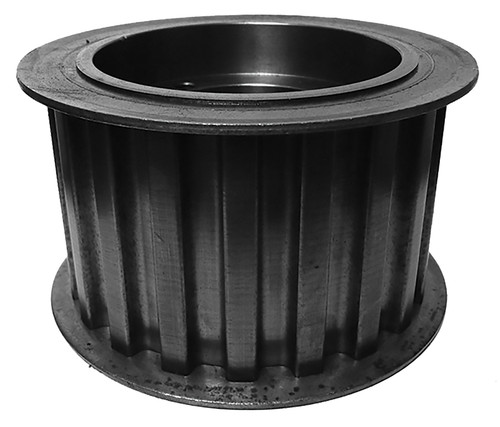

40XHR300, Timing Pulley, Cast Iron

Specifications

Product Number 40XHR300
Teeth 40
Tooth Style XH
For Belt Width (in) 3.000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) R1
Pitch Diameter (in) 11.141
Outside Diameter (in) 11.031
Flange Diameter (in) 11.688
Face Width (in) 3.625
Overall Length (in) 3.906
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
MOQ 1
Weight (lb) 39.89
Part Number Cross Reference 1057827, 40XHR300
