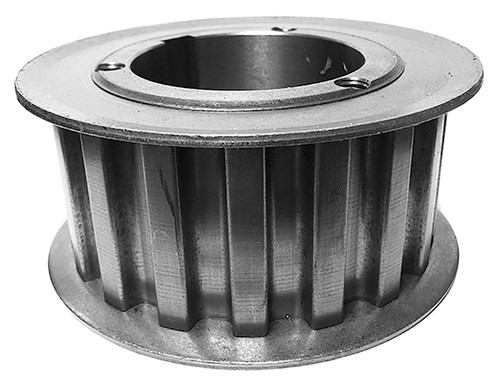

40XHR200, Timing Pulley, Cast Iron
Specifications
| Product Number | 40XHR200 |
| Teeth | 40 |
| Tooth Style | XH |
| For Belt Width (in) | 2.000 |
| Type | 12 |
| Material | Cast Iron |
| Flange Material | Steel |
| Bore Type | Split Taper |
| Bore (in) | R1 |
| Pitch Diameter (in) | 11.141 |
| Outside Diameter (in) | 11.031 |
| Flange Diameter (in) | 11.688 |
| Face Width (in) | 2.563 |
| Overall Length (in) | 3.156 |
| Min. Bore (in) | 1.125 |
| Unit System | Inch |
| Bushing | R1 |
| MOQ | 1 |
| Weight (lb) | 30.77 |
| Part Number Cross Reference | 1057660, 40XHR200 |
