40T5-PS160A Bar Stock

40T5-PS160A, A6A34M040T16, A 6A34M040T16, 40T5-PS-160

Product Details for 40T5-PS160A

Comparable to: A 6A34M040T16, A6A34M040T16, 40T5-PS-160, T540

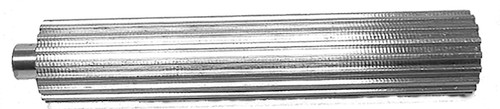

40T5-PS160A, Timing Pulley Stock, Aluminum

Specifications

Product Number 40T5-PS160A
Teeth 40
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 2.514
Outside Diameter (in) 2.474
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 63.90
O.D. (mm) 62.80
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 2.96
Part Number Cross Reference A 6A34M040T16, A6A34M040T16, 40T5-PS-160, T540
Shank Length (in) 0.8000
