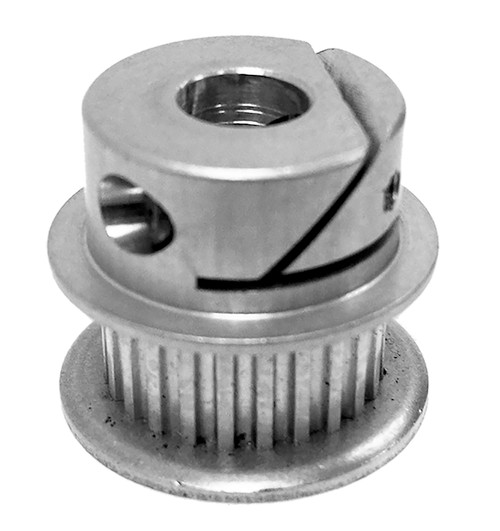

40MP025-IA3, Timing Pulley

40MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

40MP025-IA3

40MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40MP025-IA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 40MP025-IA3
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.210
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 26.00
O.D. (mm) 25.40
Number & Screw Size 1 x 4-40
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference 40MP025-IA3, 40MP025-IA3
Set Screw Quantity 1
