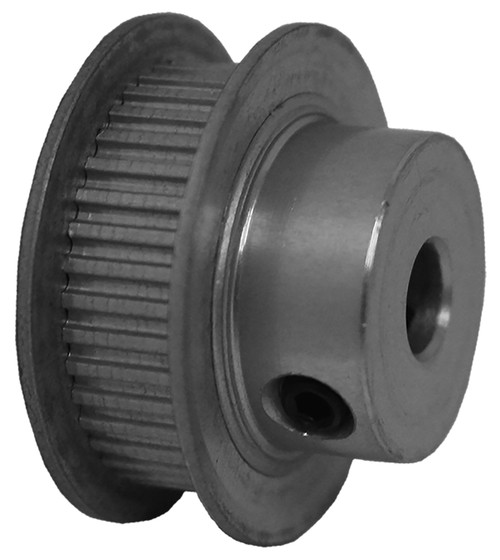

40MP025-6FA3 Imperial Pitch Pulleys
40MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,
Specifications
| Product Number | 40MP025-6FA3 |
| Teeth | 40 |
| Tooth Style | MXL |
| For Belt Width (in) | 0.250 |
| Type | 6F |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (in) | 1/4 Inch Finished Bore |
| Pitch Diameter (in) | 1.019 |
| Outside Diameter (in) | 0.999 |
| Flange Diameter (in) | 1.210 |
| Face Width (in) | 0.405 |
| Overall Length (in) | 0.719 |
| Hub Diameter (in) | 0.754 |
| Min. Bore (in) | 0.250 |
| Pulley Belt Width (in) | 0.290 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 0.05 |
| Part Number Cross Reference | A 6A16-040DF2508, A6A16-040DF2508, PB40MXL025, 78260140, PT040A08L04T, TP7A4W4-40, 40MXL025-1A X 1/4 |
| Set Screw Quantity | 2 |
