40MP012M6FA6 Metric Pulleys

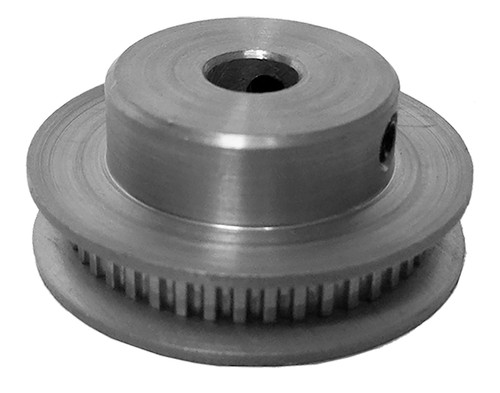

40MP012M6FA6, Timing Pulley, Aluminum, Clear Anodized,
Specifications
| Product Number | 40MP012M6FA6 |
| Teeth | 40 |
| Tooth Style | MXL |
| For Belt Width (in) | 0.125 |
| Type | 6F |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (in) | 6 mm Finished Bore |
| Bore (mm) | 6.00 |
| Pulley Belt Width (mm) | 4.00 |
| Unit System | Metric |
| P.D. (mm) | 25.90 |
| O.D. (mm) | 25.40 |
| Flange Diameter (mm) | 30.70 |
| Face Width (mm) | 7.00 |
| Overall Length (mm) | 13.50 |
| Hub Diameter (mm) | 19.20 |
| MOQ | 1 |
| Weight (lb) | 0.03 |
| Part Number Cross Reference | A 6N16M040DF3006, A6N16M040DF3006, TP7A6MW2-40 |
| Set Screw Quantity | 2 |
