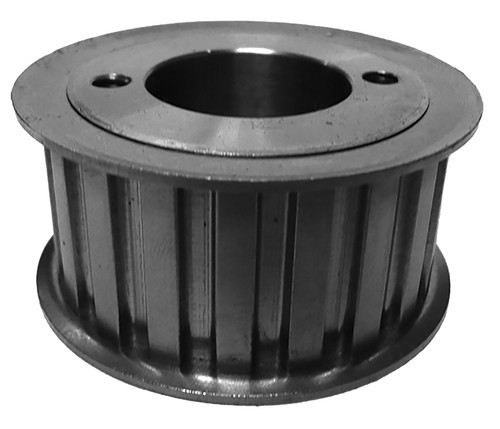

40LP100, Timing Pulley, Cast Iron
Specifications
| Product Number | 40LP100 |
| Teeth | 40 |
| Tooth Style | L |
| For Belt Width (in) | 1.000 |
| Type | 6 |
| Material | Ductile Iron |
| Flange Material | Steel |
| Bore Type | Split Taper |
| Bore (in) | P1 |
| Pitch Diameter (in) | 4.775 |
| Outside Diameter (in) | 4.745 |
| Flange Diameter (in) | 5.000 |
| Face Width (in) | 1.250 |
| Overall Length (in) | 2.188 |
| Min. Bore (in) | 0.500 |
| Unit System | Inch |
| Bushing | P1 |
| MOQ | 1 |
| Weight (lb) | 4.72 |
| Part Number Cross Reference | 1056654, 40LP100 |
