40LH075, Timing Pulley

40LH075 - Cast Iron Imperial Pitch Pulleys

40LH075

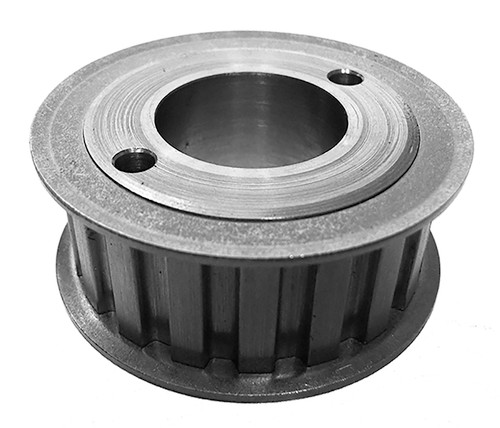

40LH075, Timing Pulley, Cast Iron

Learn more about 40LH075 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 40LH075
Teeth 40
Tooth Style L
For Belt Width (in) 0.7500
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.000
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 121.00
O.D. (mm) 120.50
MOQ 1
Weight (lb) 3.87
Part Number Cross Reference 40LH075, 40LH075, 40LH075
