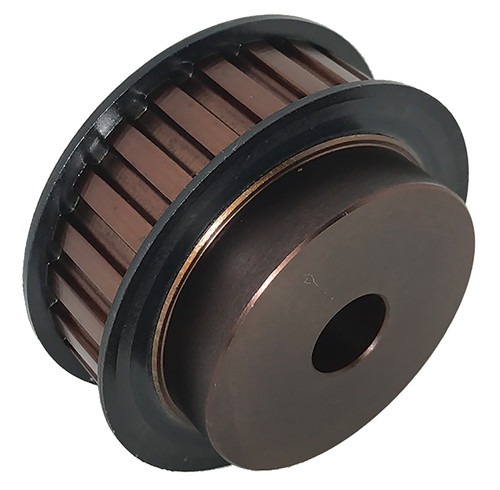

40L075-6FS7 Imperial Pitch Pulleys
40L075-6FS7, Timing Pulley, Steel, Black Oxide,
Specifications
| Product Number | 40L075-6FS7 |
| Teeth | 40 |
| Tooth Style | L |
| For Belt Width (in) | 0.750 |
| Type | 6F |
| Material | Ductile Iron |
| Finish | Black Oxide |
| Flange Material | Steel |
| Bore Type | Minimum Plain Bore |
| Bore (in) | 5/8 Inch Minimum Plain Bore |
| Pitch Diameter (in) | 4.775 |
| Outside Diameter (in) | 4.745 |
| Flange Diameter (in) | 5.000 |
| Face Width (in) | 1.000 |
| Overall Length (in) | 1.500 |
| Hub Diameter (in) | 3.625 |
| Min. Bore (in) | 0.625 |
| Pulley Belt Width (in) | 0.820 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 5.77 |
| Part Number Cross Reference | 1055276, 40LB075, 114448, P40L075 |
