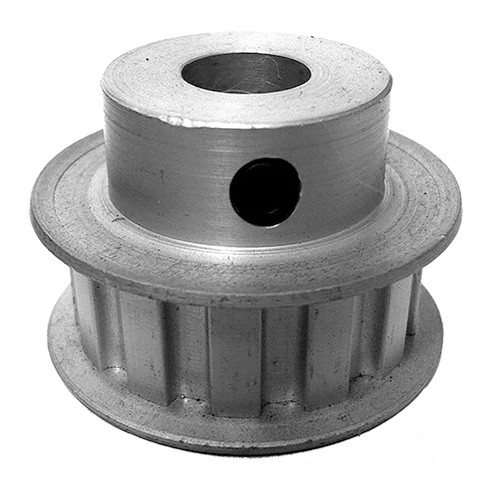

40L075-6FA6, Timing Pulley, Aluminum, Clear Anodized,
Specifications
| Product Number | 40L075-6FA6 |
| Teeth | 40 |
| Tooth Style | L |
| For Belt Width (in) | 0.750 |
| Type | 6F |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (in) | 1/2 Inch Finished Bore |
| Pitch Diameter (in) | 4.775 |
| Outside Diameter (in) | 4.745 |
| Flange Diameter (in) | 5.000 |
| Face Width (in) | 1.000 |
| Overall Length (in) | 1.500 |
| Hub Diameter (in) | 3.625 |
| Min. Bore (in) | 0.500 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 2.21 |
| Part Number Cross Reference | 40L075-6FA6 |
| Set Screw Quantity | 2 |
