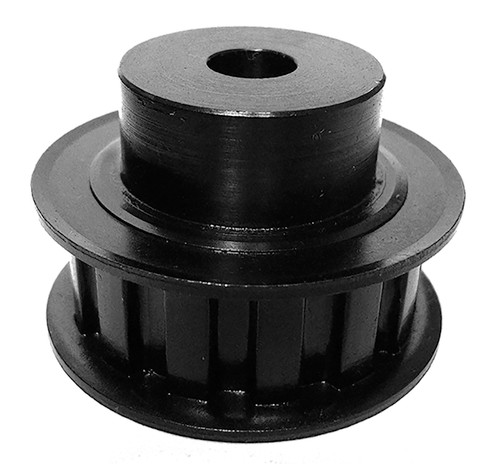

40L050-6FS6, Timing Pulley

40L050-6FS6 - Steel Imperial Pitch Pulleys

40L050-6FS6

40L050-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 40L050-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	40L050-6FS6
Teeth	40
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.745
Flange Diameter (in)	5.000
Face Width (in)	0.750
Overall Length (in)	1.250
Hub Diameter (in)	3.625
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.570
Unit System	Inch
P.D. (mm)	121.00
O.D. (mm)	120.50
MOQ	1
Weight (lb)	4.75
Part Number Cross Reference	40L050, 40LB050, 40L050 X 1/2 MPB, 40L050MPB, P40L050, P40L050-PB, 40L050-6FS6, 114444, 40L050-6FS6

Comparable to: 40L050, 40LB050, 40L050 X 1/2 MPB, 40L050MPB, P40L050, P40L050-PB, 40L050-6FS6, 114444, 40L050-6FS6
