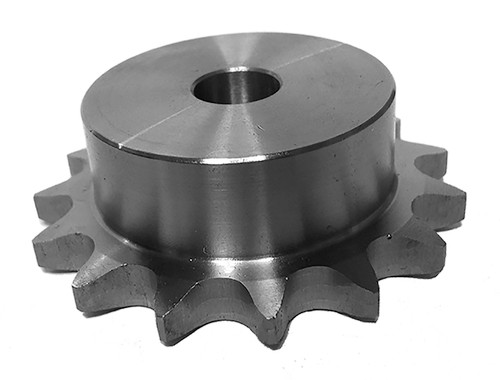

40B9, Roller Chain Sprocket

40B9

40B9

40B9, Roller Chain Sprocket, Steel

Learn more about 40B9 Roller Chain Sprockets and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	40B9
Teeth	9
Tooth Style	40
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	1.462
Outside Diameter (in)	1.674
Face Width (in)	0.284
Overall Length (in)	0.875
Hub Diameter (in)	1.063
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Weight (lb)	0.20
Part Number Cross Reference	40B9, 40B9, 40B9, 40B9, 40B9
Number of Strands	1
Number of Hubs	1

Related Products

Comparable to: 40B9, 40B9, 40B9, 40B9, 40B9

Documentation

Download Catalog

For custom parts click here

RoHS Certification
