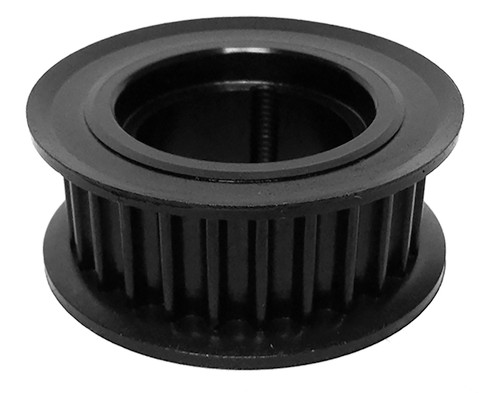

40-8P20-1610, Timing Pulley

40-8P20-1610 - Cast Iron Powerhouse® Pulleys

40-8P20-1610

40-8P20-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-8P20-1610 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	40-8P20-1610
Teeth	40
Tooth Style	8P
For Belt Width (mm)	20.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.956
Flange Diameter (in)	4.331
Face Width (in)	1.130
Overall Length (in)	1.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	1610
P.D. (mm)	102.00
O.D. (mm)	100.50
MOQ	1
Weight (lb)	2.36
Part Number Cross Reference	P40-8MGT-20, B408M20TL, P40-8M-20-1610, 20182811, P40-8M-20-1610 HT250 SPKT, P408M20TL, 40-8P20-1610, 112859, 40-8P20-1610

Comparable to: P40-8MGT-20, B408M20TL, P40-8M-20-1610, 20182811, P40-8M-20-1610 HT250 SPKT, P408M20TL, 40-8P20-1610, 112859, 40-8P20-1610
