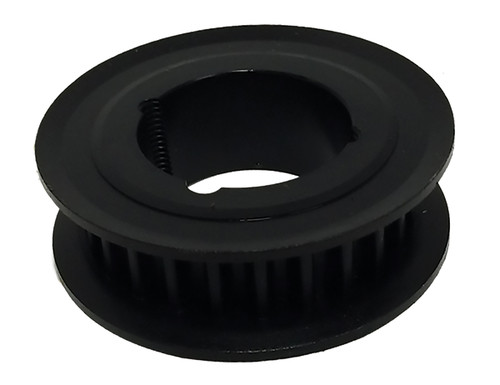

40-8MX12-2012, Timing Pulley

40-8MX12-2012

40-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-8MX12-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	40-8MX12-2012
Teeth	40
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.947
Flange Diameter (in)	4.331
Face Width (in)	0.850
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.610
Unit System	Inch
Bushing	2012
P.D. (mm)	102.00
O.D. (mm)	100.30
MOQ	1
Weight (lb)	1.87
Part Number Cross Reference	8MX-40S-12, B8MCS-40-12, 40G-8M-12-2012, 20839738, 8MX-40S-12-2012 HT500 SPKT, 8MPC40S12, 40-8MX12-2012, 481891, 40-8MX12-2012
