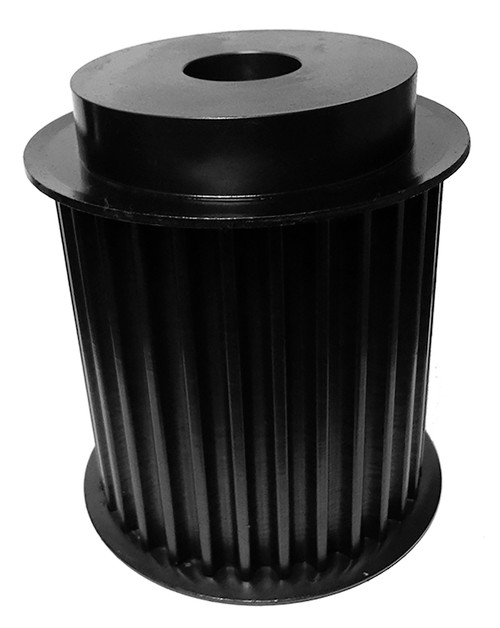

40-14M115-6FS13, Timing Pulley

40-14M115-6FS13 - Steel Powerhouse®HTD® Pulleys

40-14M115-6FS13

40-14M115-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 40-14M115-6FS13 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 40-14M115-6FS13
Teeth 40
Tooth Style HTD14mm
For Belt Width (mm) 115.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.250
Bore Description 1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.908
Flange Diameter (in) 7.500
Face Width (in) 5.250
Overall Length (in) 5.250
Hub Diameter (in) 5.890
Min. Bore (in) 1.25
Unit System Inch
P.D. (mm) 178.00
O.D. (mm) 175.50
MOQ 1
Weight (lb) 50.00
Part Number Cross Reference P40-14M-115, 40-14M115-6FS13, 40-14M115-6FS13
