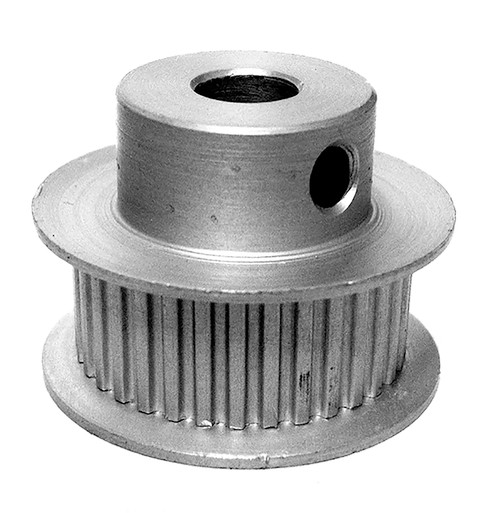

38LT312-6FA3, Timing Pulley

38LT312-6FA3 - Aluminum Imperial Pitch Pulleys

38LT312-6FA3

38LT312-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38LT312-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	38LT312-6FA3
Teeth	38
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.987
Outside Diameter (in)	0.967
Flange Diameter (in)	1.155
Face Width (in)	0.449
Overall Length (in)	0.750
Hub Diameter (in)	0.728
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.350
Unit System	Inch
P.D. (mm)	25.00
O.D. (mm)	24.60
MOQ	1
Weight (lb)	0.06
Part Number Cross Reference	A 6A6-38DF03108, A6A6-38DF03108, 38LT-312 X 1/4 6F, 38M312-1A X 1/4, 38LT312-6FA3, 38LT312-6FA3
Set Screw Quantity	2

Comparable to: A 6A6-38DF03108, A6A6-38DF03108, 38LT-312 X 1/4 6F, 38M312-1A X 1/4, 38LT312-6FA3, 38LT312-6FA3
