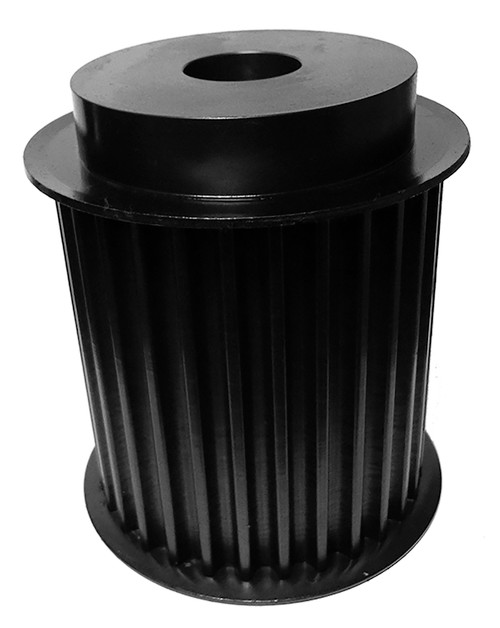

38-14M115-6FS13, Timing Pulley

38-14M115-6FS13 - Steel Powerhouse®HTD® Pulleys

38-14M115-6FS13

38-14M115-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14M115-6FS13 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 38-14M115-6FS13
Teeth 38
Tooth Style HTD14mm
For Belt Width (mm) 115.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.250
Bore Description 1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.160
Face Width (in) 5.250
Overall Length (in) 5.250
Hub Diameter (in) 5.630
Min. Bore (in) 1.25
Unit System Inch
P.D. (mm) 169.00
O.D. (mm) 166.50
MOQ 1
Weight (lb) 44.40
Part Number Cross Reference P38-14M-115, 38-14M115-6FS13, 38-14M115-6FS13
