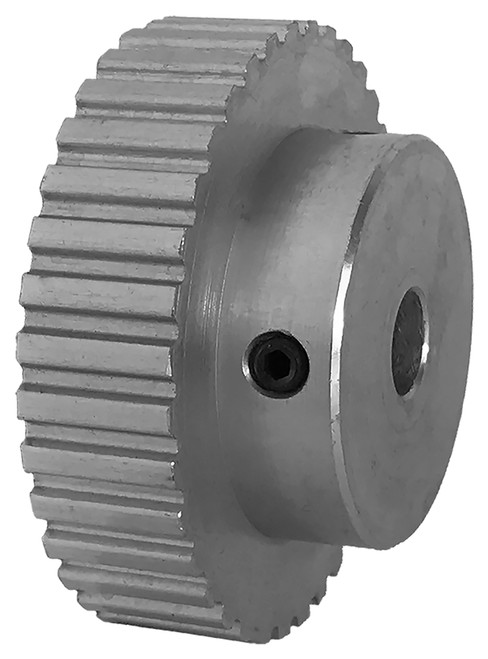

36XL037M6A10, Timing Pulley

36XL037M6A10 - Aluminum Metric Pulleys

36XL037M6A10

36XL037M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36XL037M6A10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 36XL037M6A10
Teeth 36
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 10 mm Finished Bore
Bore (mm) 10.00
Pitch Diameter (in) 2.292
Outside Diameter (in) 2.272
Pulley Belt Width (mm) 9.50
Unit System Metric
P.D. (mm) 58.00
O.D. (mm) 57.70
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference A 6A3M36NF09510, A6A3M36NF09510, 36XL037M6A10, 36XL037M6A10
Set Screw Quantity 2
