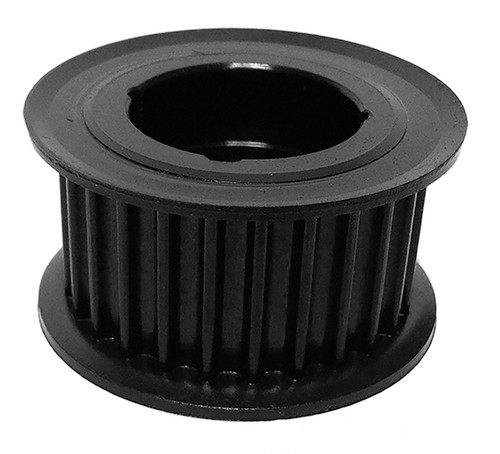

36-8P30-1610, Timing Pulley

36-8P30-1610 - Cast Iron Powerhouse® Pulleys

36-8P30-1610

36-8P30-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-8P30-1610 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	36-8P30-1610
Teeth	36
Tooth Style	8P
For Belt Width (mm)	30.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.609
Outside Diameter (in)	3.555
Flange Diameter (in)	3.938
Face Width (in)	1.500
Overall Length (in)	1.500
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.260
Unit System	Inch
Bushing	1610
P.D. (mm)	92.00
O.D. (mm)	90.30
MOQ	1
Weight (lb)	2.09
Part Number Cross Reference	P36-8MGT-30, B368M30TL, P36-8M-30-1610, 20182796, P36-8M-30-1610 HT250 SPKT, P368M30TL, 36-8P30-1610, 112874, 36-8P30-1610

Comparable to: P36-8MGT-30, B368M30TL, P36-8M-30-1610, 20182796, P36-8M-30-1610 HT250 SPKT, P368M30TL, 36-8P30-1610, 112874, 36-8P30-1610
