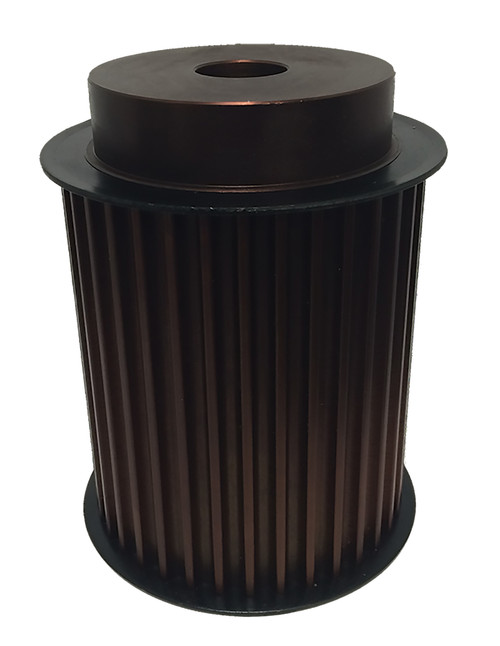

36-14M170-6FS16, Timing Pulley

36-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys

36-14M170-6FS16

36-14M170-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 36-14M170-6FS16 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 36-14M170-6FS16
Teeth 36
Tooth Style HTD14mm
For Belt Width (mm) 170.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.500
Bore Description 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.810
Face Width (in) 7.375
Overall Length (in) 7.375
Hub Diameter (in) 5.300
Min. Bore (in) 1.5
Unit System Inch
P.D. (mm) 160.00
O.D. (mm) 157.60
MOQ 1
Weight (lb) 47.00
Part Number Cross Reference P36-14M-170, 36-14M170-6FS16, 36-14M170-6FS16
