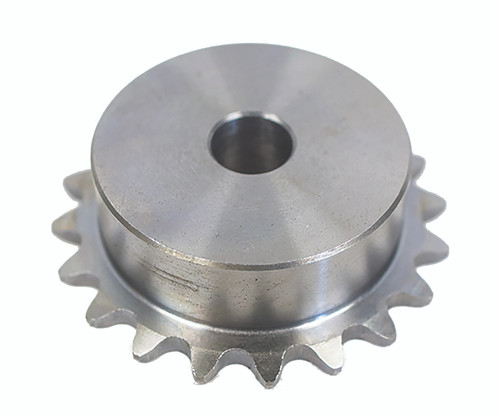

35B9, Roller Chain Sprocket

35B9, 35EM-B-9

35B9

35B9, Roller Chain Sprocket, Steel

Learn more about 35B9 Roller Chain Sprockets and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	35B9
Teeth	9
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.096
Outside Diameter (in)	1.255
Face Width (in)	0.168
Overall Length (in)	0.750
Hub Diameter (in)	0.844
Min. Bore (in)	0.375
Unit System	Inch
MOQ	1
Weight (lb)	0.09
Part Number Cross Reference	35B9, 35B9, 35B9, 35B9, 35B9
Number of Strands	1
Number of Hubs	1

Related Products

Comparable to: 35B9, 35B9, 35B9, 35B9, 35B9
