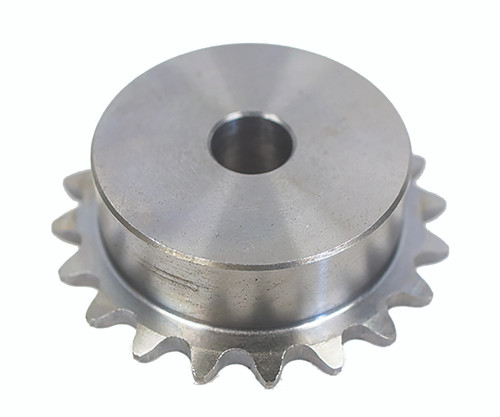

35B72, Roller Chain Sprocket

35B72, 35EM-B-72A

35B72

35B72, Roller Chain Sprocket, Steel

Learn more about 35B72 Roller Chain Sprockets and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	35B72
Teeth	72
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	8.597
Outside Diameter (in)	8.814
Face Width (in)	0.168
Overall Length (in)	1.000
Hub Diameter (in)	2.250
Min. Bore (in)	0.75
Unit System	Inch
MOQ	1
Weight (lb)	3.42
Part Number Cross Reference	35B72, 35B72, 35B72, 35B72, 35B72
Number of Strands	1
Number of Hubs	1
