35B16, Roller Chain Sprocket

35B16, 35EM-B-16

35B16

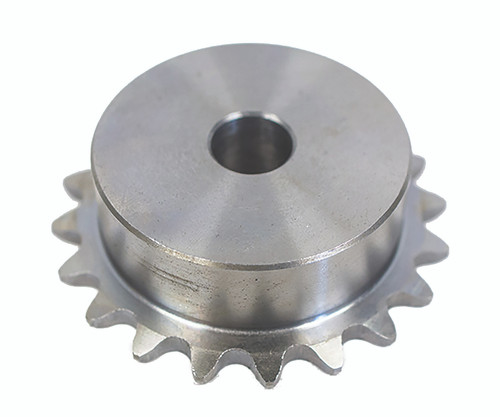

35B16, Roller Chain Sprocket, Steel

Learn more about 35B16 Roller Chain Sprockets and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	35B16
Teeth	16
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	1.922
Outside Diameter (in)	2.110
Face Width (in)	0.168
Overall Length (in)	0.750
Hub Diameter (in)	1.469
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Weight (lb)	0.35
Part Number Cross Reference	35B16, 35B16, 35B16, 35B16, 35B16
Number of Strands	1
Number of Hubs	1
